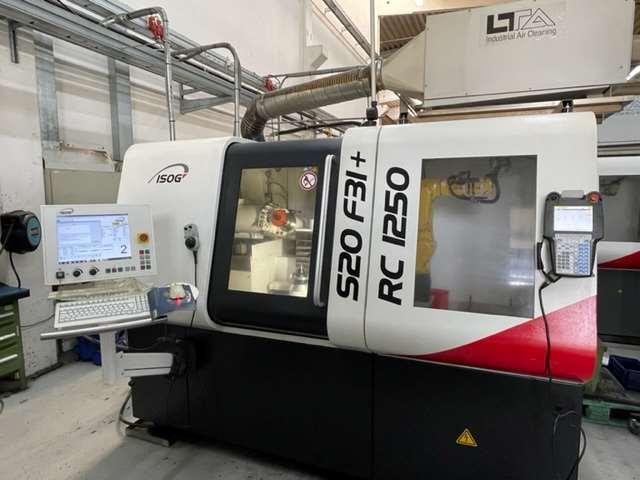

Year: 2015

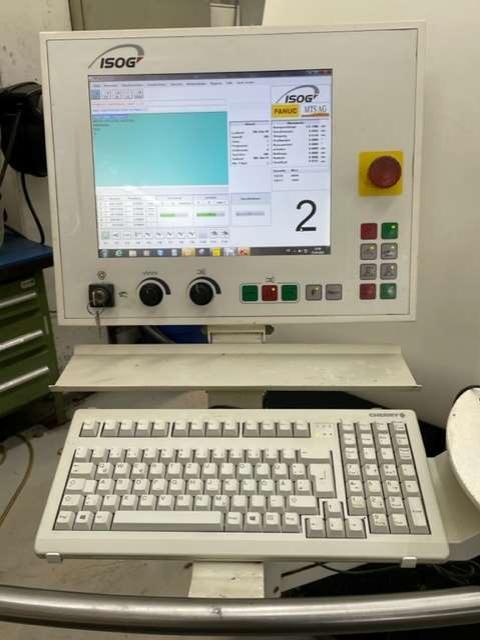

Control: Fanuc 31iB5

System: windows 7 Ultimate

Max. workpiece diameter: 250 mm

Workpiece length: 500 mm

End piece length: 340 mm

X axis

Grinding stroke: 340 mm

Feed speed: 10 m/min

Y axis

Grinding stroke: 240 mm

Feed speed: 10 m/min

Z axis

Grinding stroke: 240 mm

Feed speed: 10 m/min

A axis

Rapid feed: 500 min^-1

C axis

Rapid feed: 30 min^-1

main axis

Drive motor: synchronous direct drive

speed: 1000-8000 min^-1

Turn: clockwise and counterclockwise

Weight: 3300 kg

Size: 2100*1700*2100 mm

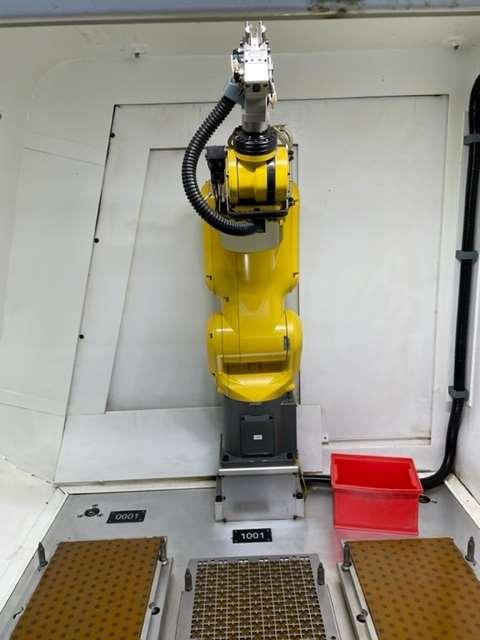

Loader

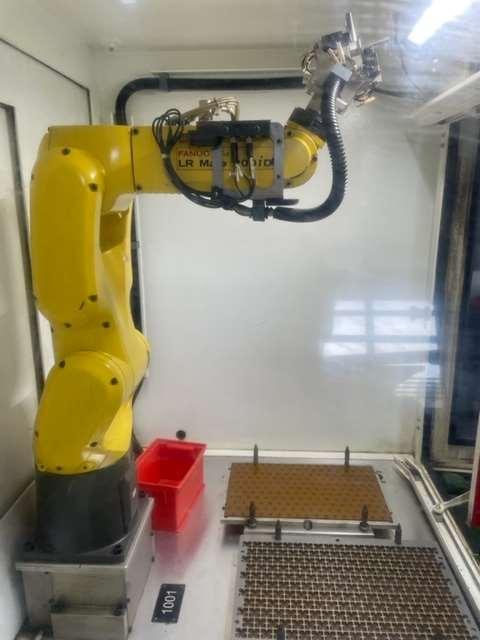

Robot model: FANUC Robot LR Mate 200Id 5

Number of control axes: 5

Size: 940*1365*2100 mm

Weight: 610 kg
