- Number of axes : 3

MILLING SPINDLE

- Tool holder type : ISO50

- Spindle power : 22 [kW]

- Spindle speeds : 7500 [rpm]

- Gearbox : yes

- Speed ranges : 2

LINEAR AXES

- Travels on X/Y/Z axes : 2.134 x 813 x 762 [mm]

- Rapid traverses rates (X/Y/Z) : 15.200 [mm/min]

- Cutting feed rates (X/Y/Z) : 12.700 [mm/min]

TOOL CHANGER

- Auto. Tool Changer type : Loading arm

- Tool magazine capacity : 30

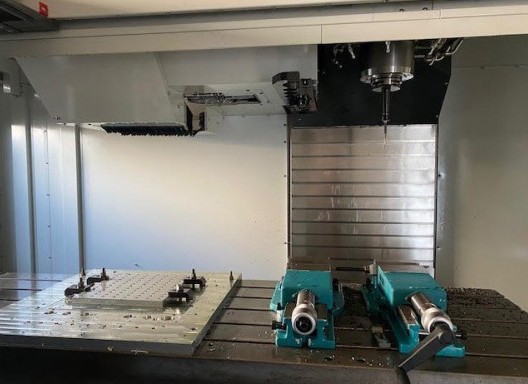

TABLE

- Table dimensions : 2.134 x 711 [mm]

- Maximum weight upon table : 1.814 [kg]

- Distance table / spindle nose (min./max.) : 127 - 889 [mm]

POWER SUPPLY

- Supply voltage : 400 [V]

WEIGHT & DIMENSIONS

- Machine floor space : 5.105 x 3.000 [mm]

- Machine height : 3.581 [mm]

- Machine weight : 12.000 [kg]

MACHINE HOURS

- Number of hours under power : 15.737 [h]

- Number of working hours : 2.884 [h]

Equipment

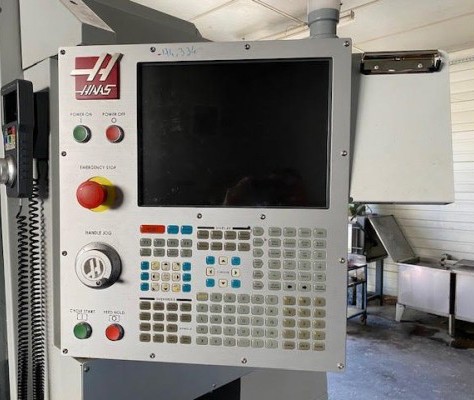

- CNC : Haas

- Interactive programming

- Interface : RS232/USB/ETHERNET

- Electronic handwheel : yes

- Rigid tapping : yes

- 3 colors status lamp

- Coolant tank : 360 liters

* with high-pressure pump : 20 [bars]

- Coolant through spindle : yes

- Auxiliary filtration

- Chips conveyor : pig-tail type

- Set of tool-holders with 50Ⱐcone + pull-out systems

- Right angle head GIRARDI
