- X transversal axis stroke : 460 [mm]

- Axis X quick feed speed : 10 [m/min]

- Axis X resolution : 0.0001 [Ⱍ

- Vertical axis Y stroke : 190 [mm]

- Axis Y quick feed speeds : 6 [m/min]

- Axis Y resolution : 0.0001 [Ⱍ

- Axis Z stroke : 730 [mm]

- Axis Z quick feed speeds : 6 [m/min]

- Axis Z resolution : 0.0001 [Ⱍ

- Rest axis W1 : 730 [mm]

- Axis w1 quick feed speeds : 7.5 [m/min]

- Axis Z resolution : 0.0001 [Ⱍ

- Swiveling axis B stroke : +/- 200 [Ⱍ

- Axis B quick feed speeds : 21600 [Ⱟmin]

- Axis B resolution : 0.0001 [Ⱍ

- Axis C (divider) : 360 [Ⱍ

- Axis C resolution : 0.0001 [Ⱍ

- Attachment taper : ISO 50

SPINDLE

- Spindle power : 9 [KW]

- Spindle speed : 9000 [Rpm]

HOURS

- Working hours : 7800

FLOOR SPACE

- Machine weight : 3.700 [kg]

Equipment

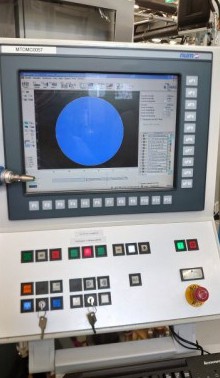

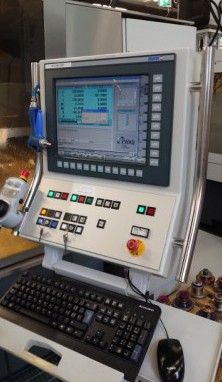

- CNC Num Control

- NUMROTOplus 2.9 software

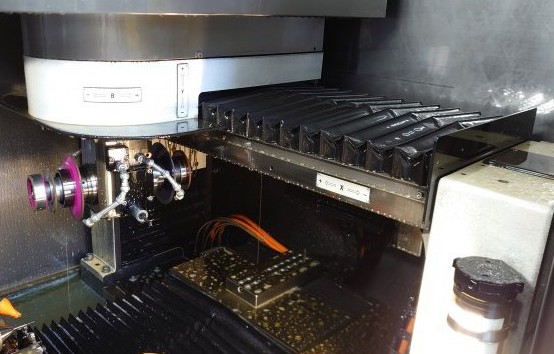

- Grinding spindle with 3 grinding wheels per spindle end

- 2 rests

- Measuring probe

- Status lamp 3 colors

- Knurl dressing device

- Grinding wheel wear compensation

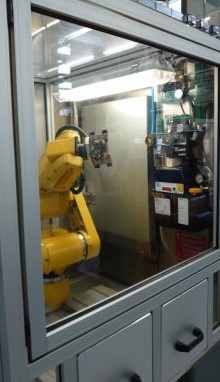

- Fanuc loading robot

- Coolant tank

- Fire fighting system

- Aspiration system

- Various grinding wheels
