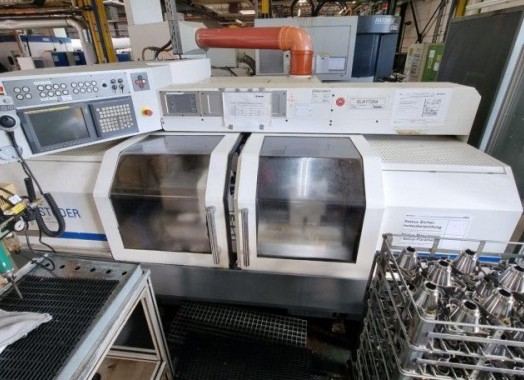

| Studer - S33 CNC - 外圆磨床 |
| [产品基本信息] |

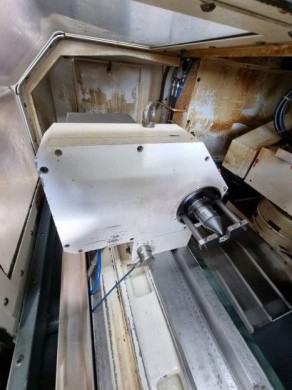

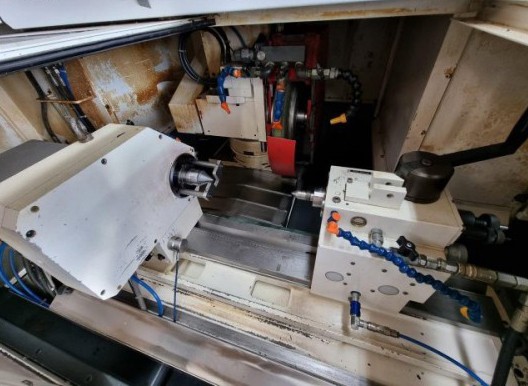

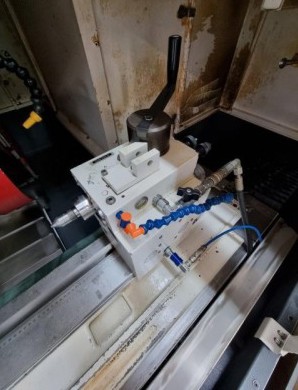

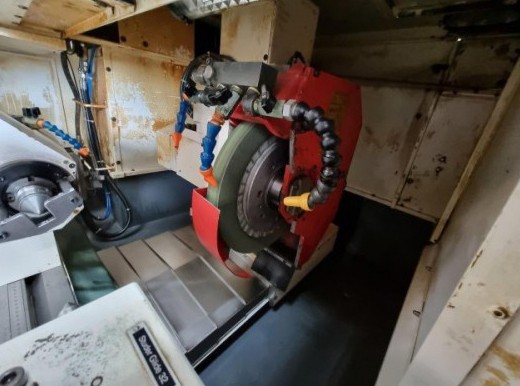

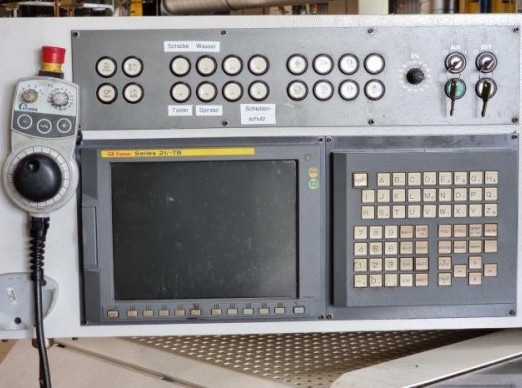

| 库存号：10023 品牌： Studer 型号：S33 CNC 产地：国外 所在地： 年份： 描述: - distance between centers : 650 [mm] - centers height : 175 [mm] - strokes (X/Z) : 285 / 800 [mm] - table orientation : 0 - 8,5 [Ⱍ GRINDING WHEEL HOLDER HEADSTOCK - grinding wheels dimensions : 500 x 63 x 203,2 [mm] - peripheral speed : 50 [m/sec] - power : 7,5 [kW] - manual orientation on stops : 0 and 30 [Ⱍ PART HOLDER HEADSTOCK - taper : CM5 - speeds : 1 - 1500 [Rpm] - power : 3 [kW] - boring : 30 [mm] - indexing precision axis C : +/- 0,5 [Ⱍ TAILSTOCK - taper : CM4 - quill diameter : 50 [mm] - quill stroke : 35 [mm] POWER SUPPLY - voltage : 400 [V] - frequency : 50 [Hz] WEIGHT - Machine weight : 11350 [kg] MACHINE HOURS - Number of hours under power : 52810 [h] Equipment - control CNC FANUC 2li-TB - constant programmable cutting speed - electronic deported crank handle - direct measuring rules on X and Z - pneumatic assistance on part-holder headstock and tail stock - part holder headstock with fine concentricity adjustment - tailstock with fine concentricity adjustment - hydraulic recoil of the tailstock quill - touch detector SENSITRON 6 - coolant tank * with paper filter - fixed dressing on part holder headstock |
