- Number of axes : 4

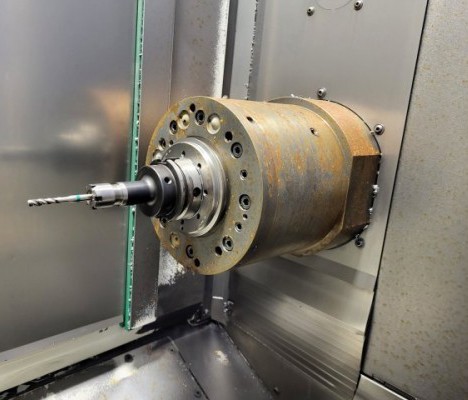

MILLING SPINDLE

- Tool holder type : HSK63

- Spindle power : 40 [kW]

- Spindle speeds : 16.000 [rpm]

LINEAR AXES

- Travels on X/Y/Z axes : 630 x 630 x 630 [mm]

- Rapid traverses rates (X/Y/Z) : 60 [m/min]

- Cutting feed rates (X/Y/Z) : 60.000 [mm/min]

B ROTARY AXIS

- Travel : 360 [Ⱍ

- Indexing precision : 0,001 [Ⱍ

TOOL CHANGER

- Auto. Tool Changer type : Loading arm

- Tool magazine capacity : 54

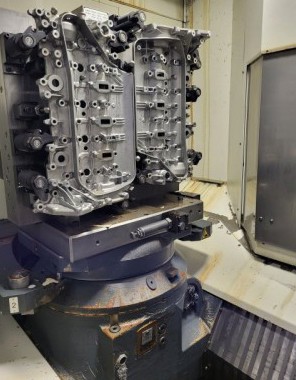

PALLET CHANGER

- Pallet changing device type : Rotopallet

- Pallet size : 400 x 500 [mm]

- Pallets number : 2

- Maximum weight upon pallet : 800 [kg]

- Maximum workpiece diameter : 720 [mm]

- Maximum workpiece height : 850 [mm]

POWER SUPPLY

- Supply voltage : 400 [V]

- Total installed power : 43 [kVA]

WEIGHT & DIMENSIONS

- Machine floor space : 6.242 x 2.490 [mm]

- Machine height : 3.230 [mm]

- Machine weight : 12.000 [kg]

MACHINE HOURS

- Number of hours under power : 13.492 [h]

- Number of spindle hours : 10.036 [h]

Equipment

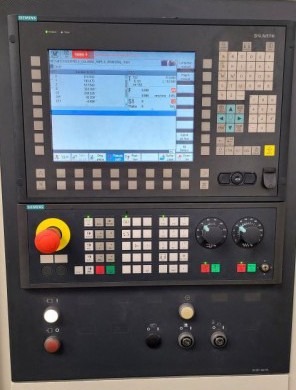

- CNC : Siemens 840D sl

- Interface : USB / RJ45

- 3 colors status lamp

- Linear scales

- Hydraulic counterbalance for the headstock

- Hydraulic workpiece clamping : 200 [bars]

- Coolant tank : 1.800 [l]

* with high-pressure pump : 50 [bars]

* Coolant through spindle

* with paper filtering unit : KNOLL KF400/1800

* With cabin washing

* With washing gun

- Chips conveyor : KNOLL 600K1

- Spindle cooling unit

- Oil mist extractor : LTA AC3001-R

- Tool-holders : 28
