Caracteristics
- distance between centers : 1000 [mm]
- centers height : 175 [mm]
- strokes (Z/X) : 1050 x 275 [mm]
- max. feeds (Z/X) : 10 x 5 [m/min]
- grinding wheelhead type : 1 OD left + 1 ID
- grinding wheel dimensions : 400 x 63 x 80 [mm]
- grinding wheel motor power : 7,5 [kW]
- rotation speed : 1670 x 2200 [Rpm]
- grinding wheelhead orientation : -15 to +225 [Ⱍ
- workhead tapper : ISO 50 --> CM3

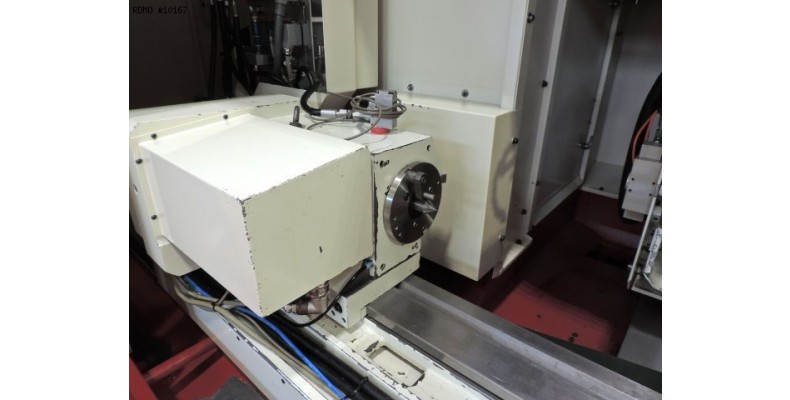

- workhead rotation speed : 30-750 [Rpm]
- workhead power : 1.2  [kW]
- tail stock : type Morse 3
- quill stroke : 35 [mm]
- weight : 7000 [kg]
- Number of hours under power : 24587 [h]
- Number of working hours : 6410 [h]

Equipment

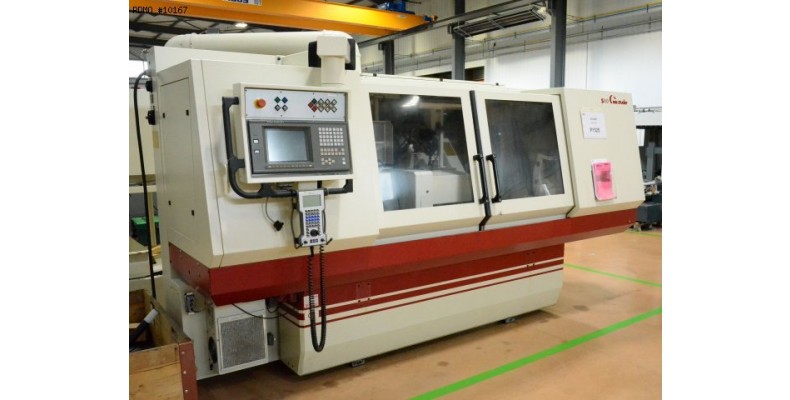

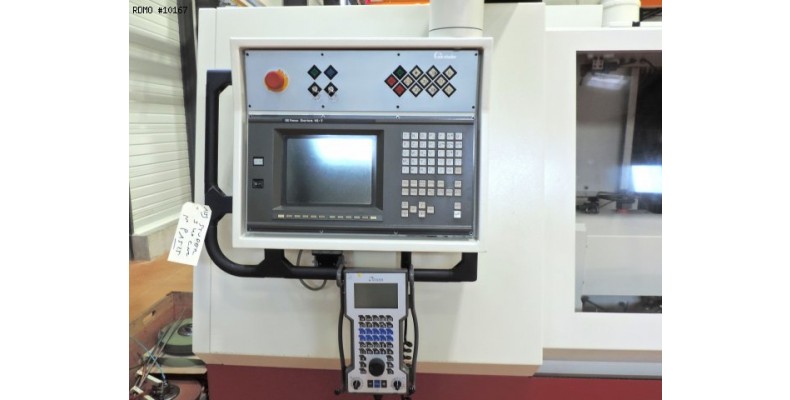

- control CNC FANUC 16 T
- programming through Pictogramming
- deported electronic handwheel

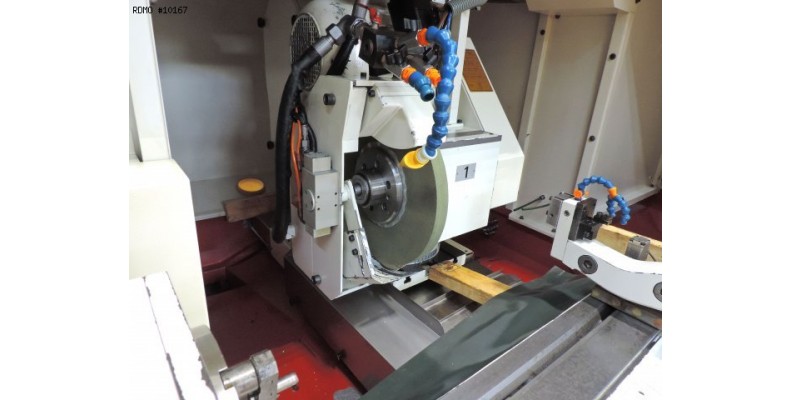

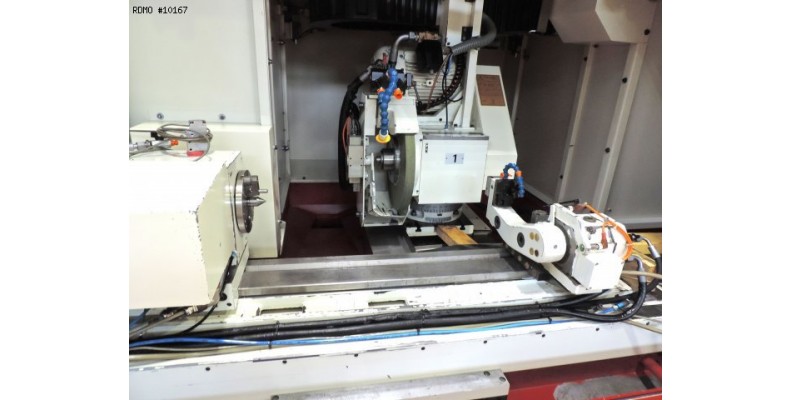

- grinding head 1 external grinding left
- B axis for indexing of the grinding wheelhead every 5ⰼbr>manual
- tail stock with fine concentricity adjustment
- sensitron
- false table swiveling fine adjustment
- diamond grinding device retractable
- 5 grinding wheel holder flanges
- 4 grinding wheels
- 1 internal spindle : 20.000 [rpm]

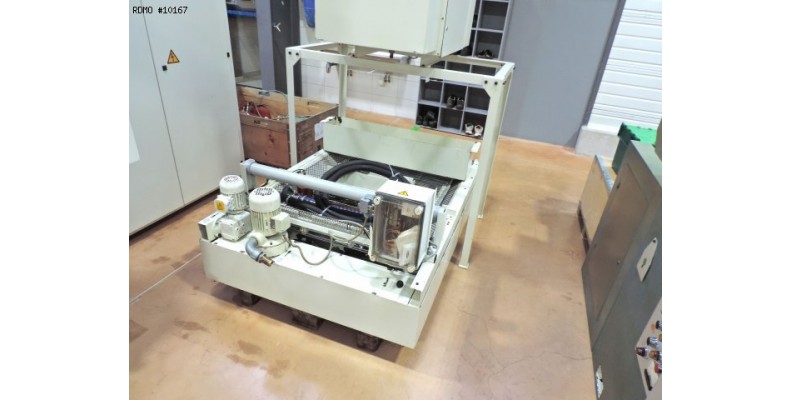

- cooling tank

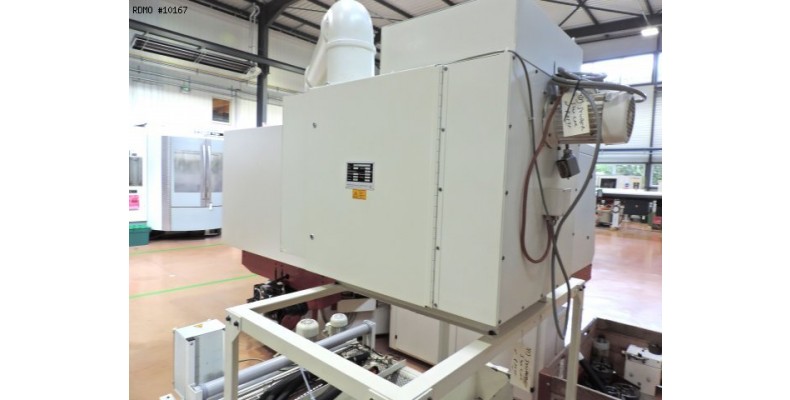

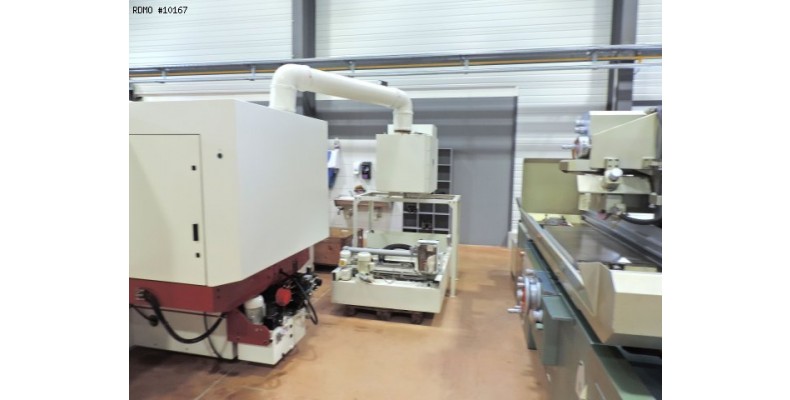

- Oil mist extractor
