Number of axis total  4

Table length:  1150 mm

Table width : 700 mm

Turret stations:  60

Longitudinal travel (X-axis)  1000 mm

Transversal travel (y axis)  750 mm

Vertical travel (z axis)  750 mm

Tool changer:  TC 30

    Number of tools  30

    Tool diameter  77 mm

    Diameter with free adjacent pockets  115 mm

    Tool lenght  305 mm

Spindle nose: HSK  A63

Distance from vertical

    spindle to table  115 mm

Spindle speeds:

    stepless

       up to  24000 rpm

Feed range  1500 mm/min

Rapid traverse:  22 m/min

Voltage 50 Hz 3x  400 Volt

Total power required  40 kW

Time under power  21859 Hour

Operating time  7308 Hour

Spindle run time  1564 Hour

Machine's weight about  10500 kg

Overall dimensions machine(L*W*H):  5220*3100*2840mm

Various accessories:

Tool changer:

    Number of tools  30

Internal coolant supply (cts)

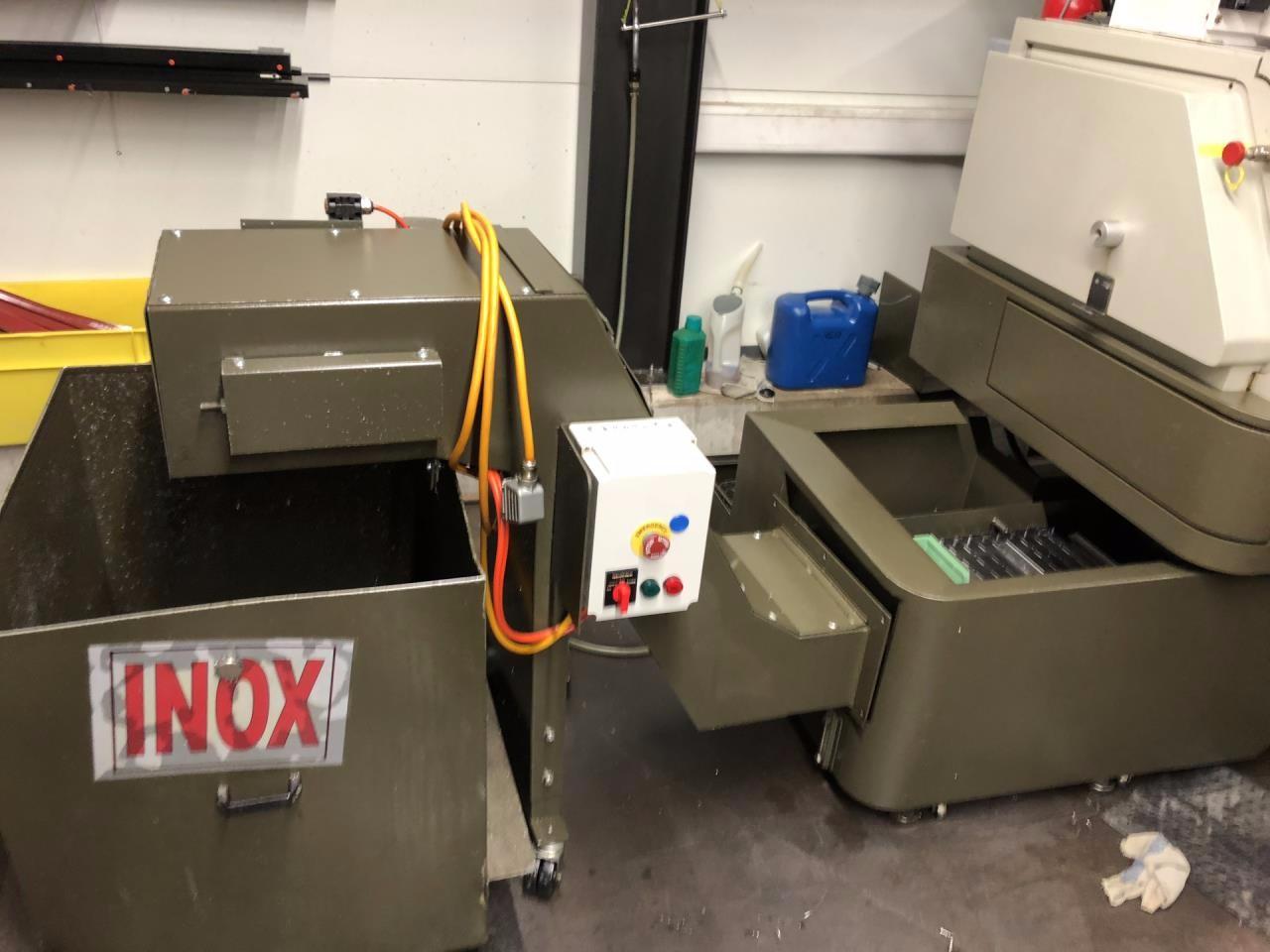

Chip conveyor

Dividing attachment 4th axis

Set of toolholders  45 pce.

Tool cabinet  LISTA
