Spindle nose: A2-5

Swing over bed: 460mm

Maximum turning diameter: 285mm

Maximum turning length: 360mm

Hole through draw tube: 45mm

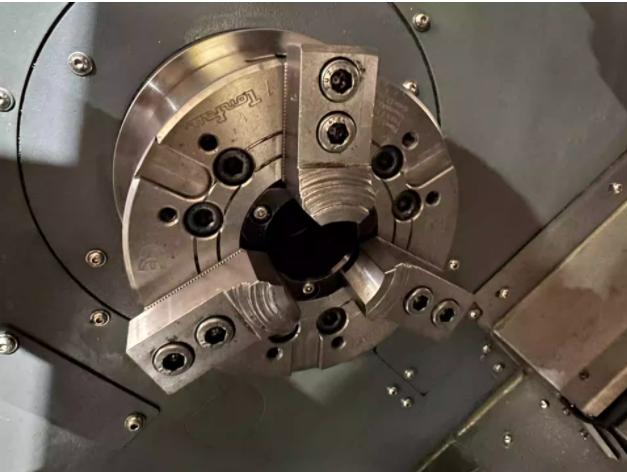

Chuck size: 160mm

Spindle speed: 6000rpm

Front bearing inner diameter: 90mm

Hole through spindle: 56mm

Spindle torque: 127Nm

X-axis travel: 163mm

Z-axia travel: 360mm

X-axis rapid rate: 30m/min

Z-axis rapid rate: 30m/min

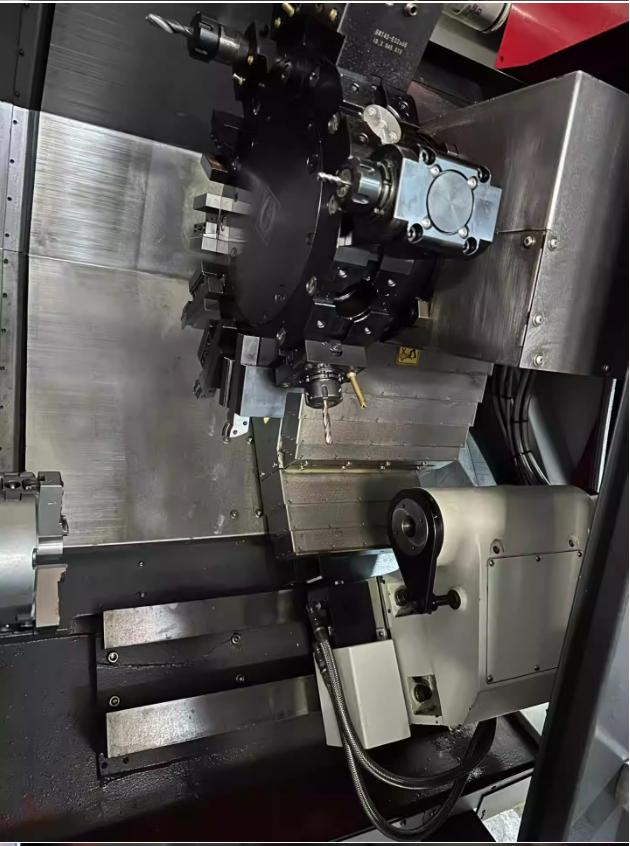

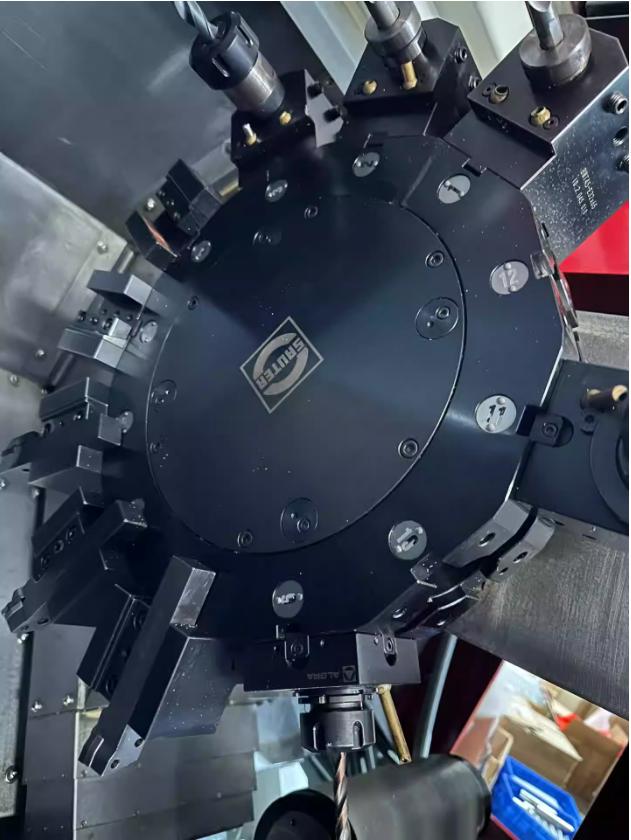

Tool magazine: 12
