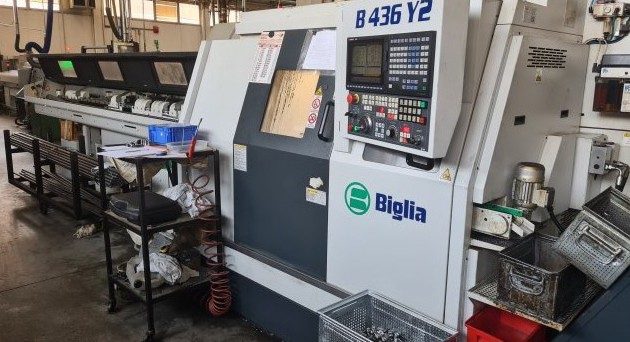

| Biglia - B436 Y2 - 数控车床 |
| [产品基本信息] |

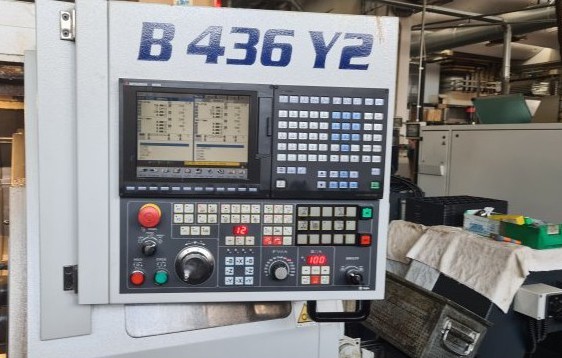

| 库存号：10020 品牌： Biglia 型号： B436 Y2 产地：国外 所在地： 年份： 描述: - Number of axes : 10 - Number of spindles : 2 - Number of turrets : 2 MAIN SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 7000 [rpm] - Max. bar diameter : 36 [mm] - Max. chuck diameter : 100 [mm] - C axis indexing precision : 0.001 [Ⱍ COUNTER-SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 7000 [rpm] - Max. bar diameter : 36 [mm] - Max. turning diameter : 100 [mm] - C axis indexing precision : 0.001 [Ⱍ - Travel : 340 [mm] TURRET 1 - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 85/300 [mm] - Y stroke : -25/+25 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 4.6 [kW] TURRET 2 - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 35/300 [mm] - Y stroke : -25/+25 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 4.6 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power WEIGHT & DIMENSIONS - Machine floor space : 3682 x 1430 [mm] - Machine height : 1900 [mm] - Machine weight : 5000 [kg] MACHINE HOURS - Number of working hours : 36500 [h] Equipment - CNC : Mitsubishi M700 - Coolant tank * with high-pressure pump : 30 [bars] * with cooling unit for coolant * Coolant through spindle - Chips conveyor - Pressurized spindle and counter spindle - Tool probe : MARPOSS - Parts catcher - Parts conveying strip - Bar loader : TOP Fusion - Electric transformer - Number of turning tool holders : 3 - Number of fixed tool holders : 21 - Collet chuck : x2 Bellegrandi |
