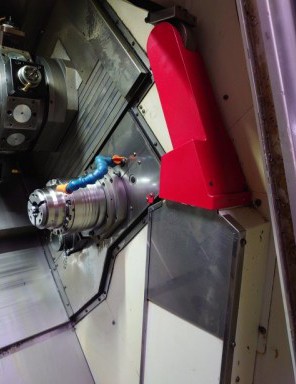

| MIYANO - ABX-64THY2 - 数控车床 |
| [产品基本信息] |
| 库存号：10021 品牌： MIYANO 型号：ABX-64THY2 产地：国外 所在地： 年份： 描述: - Number of spindles : 2 - Number of axes : 12 - Number of turrets : 3 MAIN SPINDLE - Spindle nose : A2-6 - Spindle power : 15 [kW] - Spindle speeds : 40 - 4000 [rpm] - Max. bar diameter : 64 [mm] - Max. machining length : 118 [mm] - Max. chuck diameter : 165 [mm] - C axis indexing precision : 0,001 [Ⱍ COUNTER-SPINDLE - Spindle nose : A2-6 - Spindle power : 7,5 [kW] - Spindle speeds : 50 - 5000 [rpm] - Max. bar diameter : 51 [mm] - Max. machining length : 125 - Max. turning diameter : 165 [mm] - C axis indexing precision : 0,001 [Ⱍ UPPER LEFT TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 190 x 270 [mm] - Y stroke : +/- 40 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 4.5 [kW] UPPER RIGHT TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 190 x 270 [mm] - Y stroke : +/- 40 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 4.5 [kW] LOWER LEFT TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 190 x 550 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 4.5 [kW] POWER SUPPLY - Supply voltage : 220 [V] - Total installed power : 49 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3.480 x 2.190 [mm] - Machine height : 2.180 [mm] - Machine weight : 11350 [kg] MACHINE HOURS - Number of hours under power : 5014 [h] - Number of working hours : 126 [h] Equipment - CNC : Fanuc 31i-Model B - Electronic handwheel - Tool probe : RENISHAW - 3 colors status lamp - Coolant tank * with high-pressure pump - Chips conveyor : Droite LNS - Tool breakage detection - Workpiece loading robot : FANUC - Predisposition for barfeeder - Electric transformer : 400 / 220 [V] |
