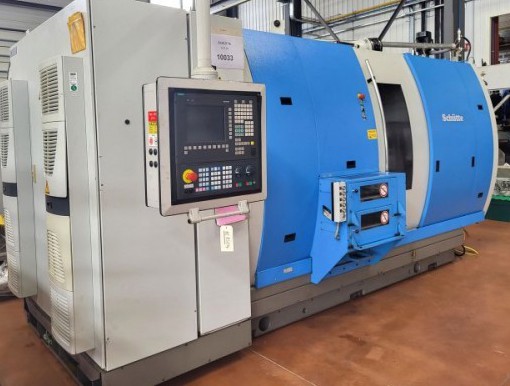

| SCHÜTTE - SC9-26 - 车床 |
| [产品基本信息] |

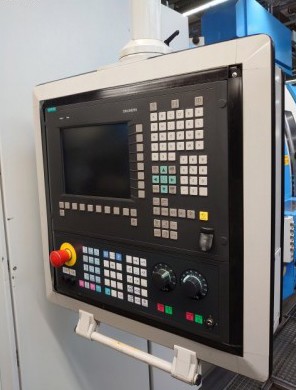

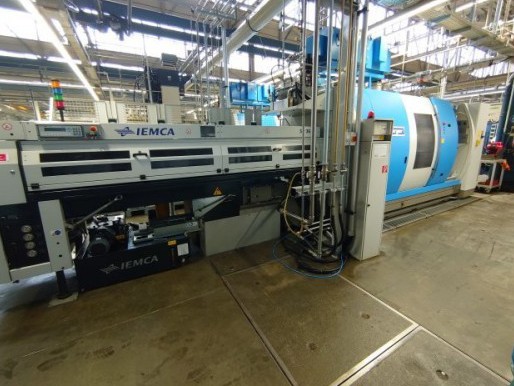

| 库存号：10014 品牌： SCHÜTTE 型号：SC9-26 产地：国外 所在地： 年份： 描述: Number of spindles: 9 - Bar capacity: 26 [mm] MAIN SPINDLES 1 TO 6 - Nominal torque: 18.5 [Nm] - Max. spindle speed: 7000 [rpm] - Stroke X: 70 [mm] - Stroke Z: 125 [mm] MAIN SPINDLES 8 AND 9 - Nominal torque: 15 [Nm] - Max. spindle speed: 10000 [rpm] X-stroke: 110 [mm - Stroke X: 110 [mm] - Travel Z: 125 [mm] COUNTER SPINDLE 7 - Nominal torque: 15 [Nm] - Max. spindle speed: 10000 [rpm] X-stroke: 110 [mm - Stroke Z: 300 [mm] POWER SUPPLY - Supply voltage: 400 [V] - Installed power: 109 [A] DIMENSIONS - Floor dimensions: 9.100 x 1.805 [mm] - Machine height: 2,800 [mm] - Machine weight : 18.500 [kg] MACHINE HOURS - operating hours : 82000 [h] Equipment - CNC Siemens Sinumerik 840D - Chips conveyor - Bar loader : SIR 36/33 F - Coolant tank: KNOLL VRF 450/2600 * with high pressure pump * with paper filtration * capacity: 2600 [l] |
